ASNU30 Precision P6 One Way Bearing with GCr15 Material and 255Nm Torque Capacity
Premium Products
ASNU30 Precision P6 One Way Bearing with GCr15 Material and 255Nm Torque Capacity
1
2
3
4
5
6
Model Number :ASNU 30
Brand Name :SUMA
Place of Origin :Jiangsu, China
MOQ :2
Price :$10-12
Precision Rating :P6
Seals Type :Sealed
Structure Type :Roller type
Material :GCr15
Torque Capacity :255Nm
Width :27mm
Inner Diameter :30mm
Outer Diameter :72mm
Weight :0.54kg
Overrunning Speed :1400min-1
Max Speed :2200min-1
Drag Torque :14Ncm
Bearing Supported :No
Load Type :Axial and radial
Tolerance :n6 (outer race)
Contact Now
ASNU30 One Way Freewheel Roller Clutch Bearing
Product Description
Features of one-way clutch bearing asnu :
NFS is a roller type freewheel non-bearing supported. Bearing are supporte axil and radial load. Lubrication and sealing must be also provided by installation.
Catalogue of one way roller clutch bearing ASNU for your choice
Since ASNU NFS type one way clutch is a roller type without bearing supported, bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. The inner race is keyed to the shaft. The outer race has positive n6 tolerance, to give a press fitin a H7 housing.
Type
Size
Overrunning
Speeds
Weight
Dragtorque
ASNU
(NFS)
dH7
TKN1)
nimax2)
namax3)
Dn6
D5
L
b
t
s
e
f
TR
[mm]
[Nm]
[min-1]
[min-1]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[kg]
[Ncm]
8
12
3300
5000
35
28
13
4
1.4
2.4
0.6
0.3
0.07
1.6
12
12
3300
5000
35
28
13
4
1.4
2.4
0.6
0.3
0.06
1.6
15
30
2400
3600
42
37
18
5
1.8
2.4
0.8
0.3
0.11
1.9
17
49
2300
3400
47
40
19
5
2.3
2.4
1.2
0.8
0.15
1.9
20
78
2100
3100
52
42
21
6
2.3
2.4
1.2
0.8
0.19
1.9
25
125
1700
2600
62
51
24
8
2.8
2.4
1.2
0.8
0.38
5.6
30
255
1400
2200
72
60
27
10
2.5
2.4
1.8
1
0.54
14
35
383
1200
1900
80
70
31
12
3.5
2.4
1.8
1
0.74
16
40
538
1100
1700
90
78
33
12
4.1
2.5
1.8
1
0.92
38
45
780
1000
1600
100
85
36
14
4.6
2.5
1.8
1
1.31
43
50
1013
850
1350
110
92
40
14
5.6
2.5
1.8
1
1.74
55
60
1825
750
1050
130
110
46
18
5.5
3.6
2.6
1.5
2.77
110
70
2300
600
950
150
125
51
20
6.9
3.6
2.6
1.5
4.16
140
80
3275
550
850
170
140
58
20
7.5
3.6
2.6
1.5
6.09
180
90
5325
500
750
190
160
64
20
8
3.6
2.6
2
8.2
230
100
7250
450
680
215
175
73
24
8.5
3.6
2.6
2
12.6
380
120
13500
370
550
260
215
86
28
10
3.6
2.6
2.5
22
650
150
26625
300
460
320
260
108
32
12
3.6
3.6
2.5
42
1000
200
44500
230
350
420
350
138
45
16
7.6
3.6
3
93
2000

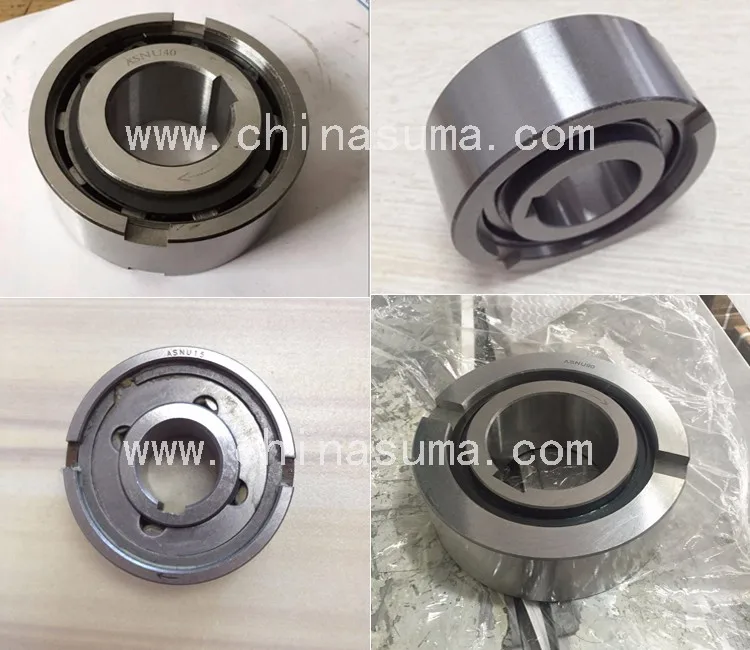

Detailed Images
Company Information
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory) is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Production flow
Clients Visit
FAQ
Q: How do you pack the goods?
Total less than 25 KG:Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG :Carton box +Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
